Multi-Parameter SensorsTL-FUV-408
Multi-Parameter Water Quality Sensor (Full Spectrum)
Multi-Parameter Sensors
Multi-Parameter Water Quality Sensor (Full Spectrum)
TL-FUV-408
Full spectrum absorption sensor measuring 12+ parameters simultaneously. IP68, RS485 output.
Request a QuoteProduct Overview

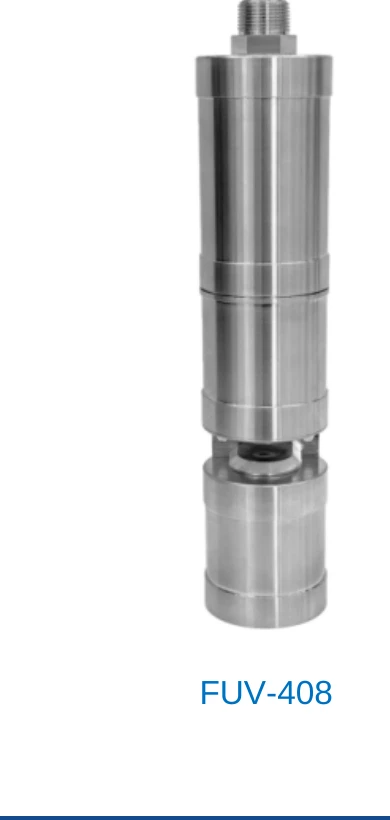

The TL-FUV-408 is a full spectrum absorption sensor that simultaneously measures COD, BOD, Chroma, TOC, Turbidity, UV254, TP, TN, NHN, NO2, NO3, and CODMn in a single submersible probe. Eliminates the need for multiple individual sensors in complex monitoring applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Measurement Principle | Full spectrum absorption |
| Measuring Parameters | COD + BOD + Chroma + TOC + Turbidity + UV254 + TP + TN + NHN + NO2 + NO3 + CODMn |
| Accuracy | ±5% FS |
| Signal Output | RS485 Modbus RTU |
| Power Supply | 12 VDC |
| Working Conditions | 0–45°C, 0–1 Bar |
| Protection | IP68 |
| Installation | Submersible |
| Calibration | Spectral calibration |
| Cable Length | 5m |
| Body Material | 316L Stainless steel |
Key Features
- 12+ parameters in a single submersible probe
- Full spectrum absorption technology
- Eliminates need for multiple sensors
- 316L stainless steel body for durability
Typical Applications
Municipal wastewater complianceRiver/lake monitoring stationsIndustrial effluent monitoringEnvironmental surveillance
