HH Series
High-Frequency, High-Pressure Industrial Reliability
Product Overview
The HH Series is engineered for high-pressure, high-frequency applications, featuring a reinforced solenoid drive system capable of stable operation at elevated back pressures. It is the preferred choice for industrial processes requiring precise metering of viscous or corrosive chemicals.
Product Features
Technical Data
| Model | Max Flow (L/h) | Max Pressure (bar) | Power (W) |
|---|---|---|---|
| HH-0316 | 3 | 16 | 35 |
| HH-0716 | 7 | 16 | 35 |
| HH-1516 | 15 | 16 | 35 |
| HH-3010 | 30 | 10 | 35 |
* Specifications listed are for standard models. Contact us for custom configurations.
Typical Applications
Installation & Application Gallery

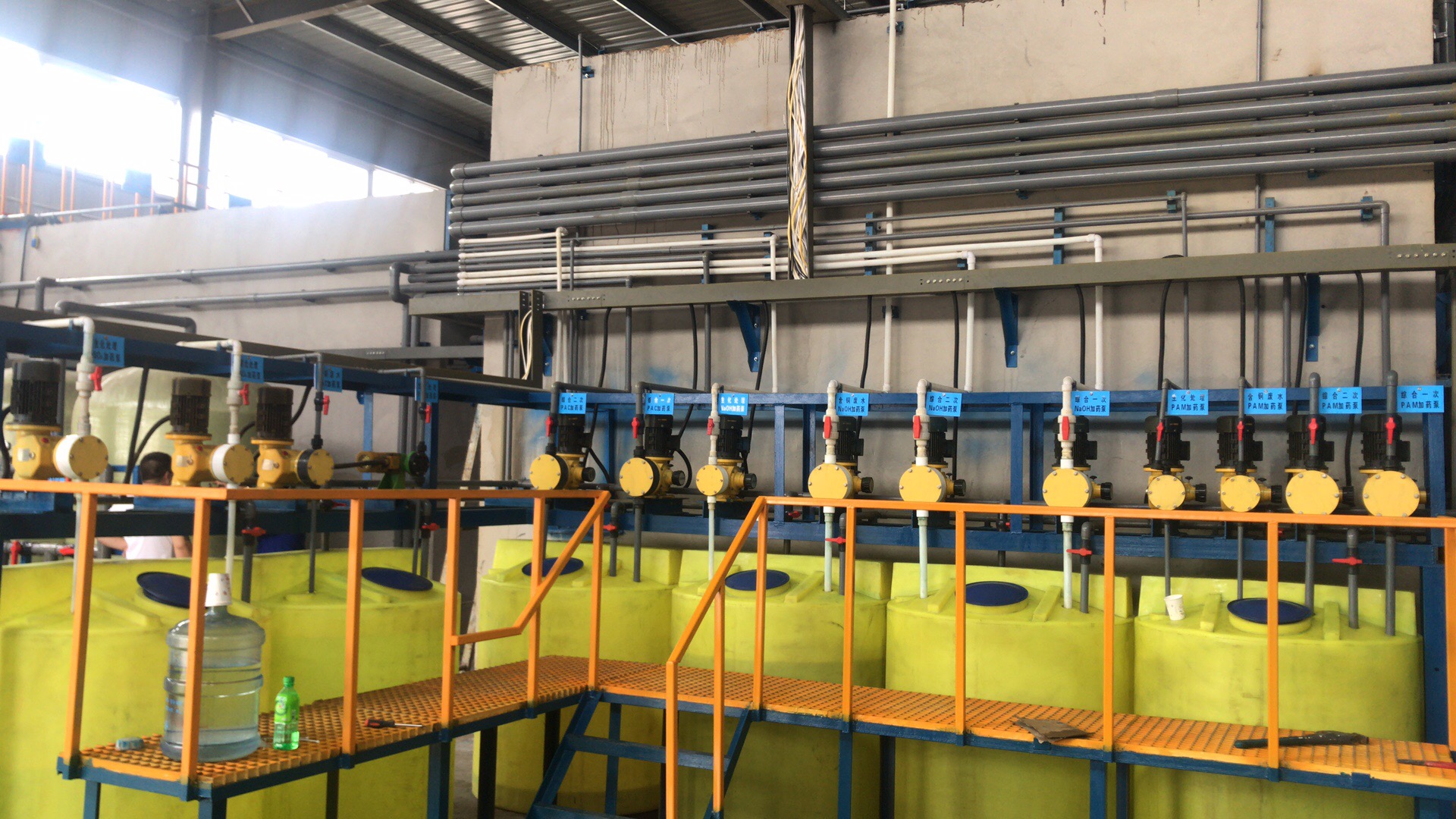

Water treatment dosing system — multiple solenoid metering pumps installed in parallel

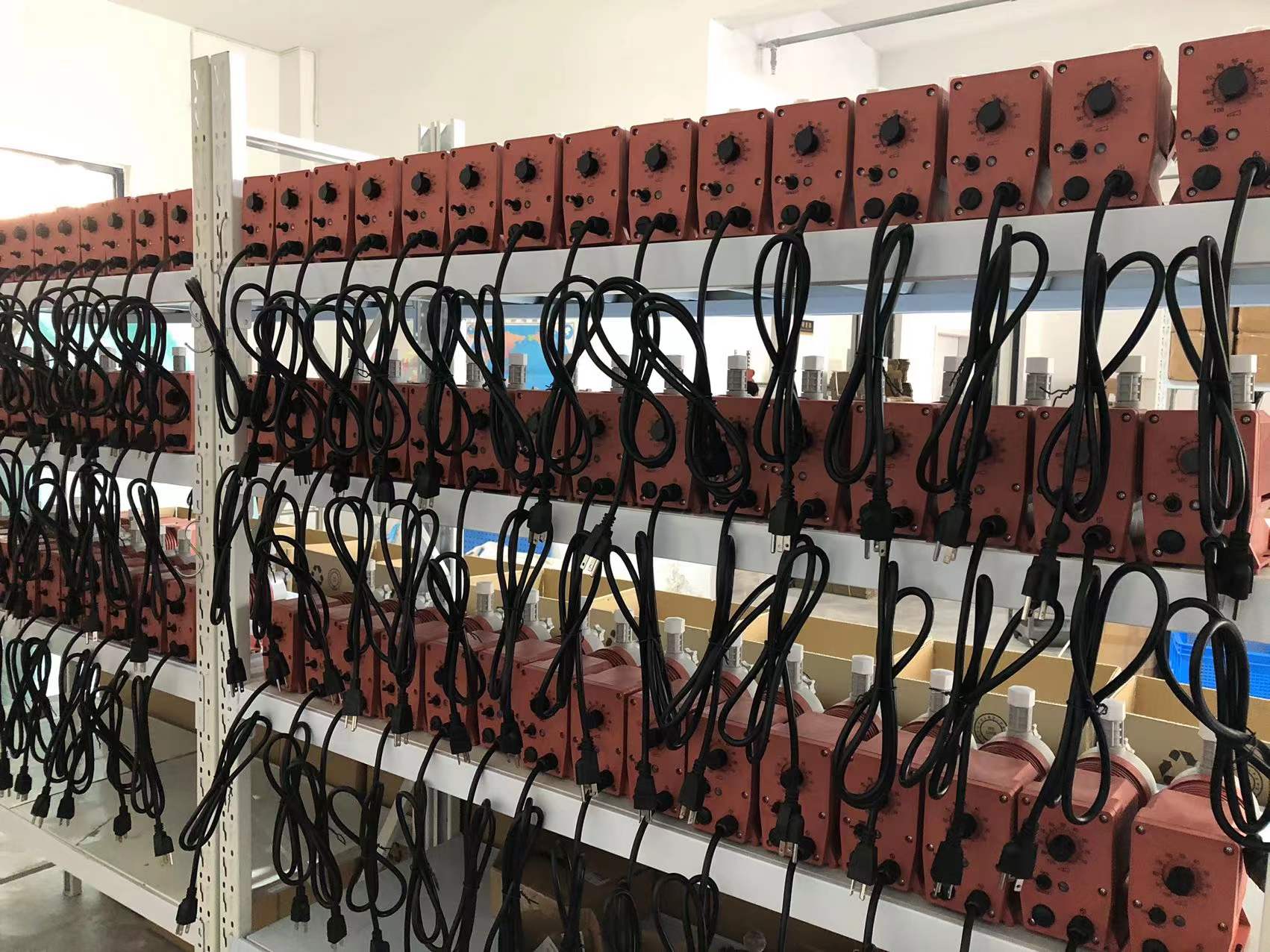

Warehouse stock — solenoid metering pumps ready for dispatch

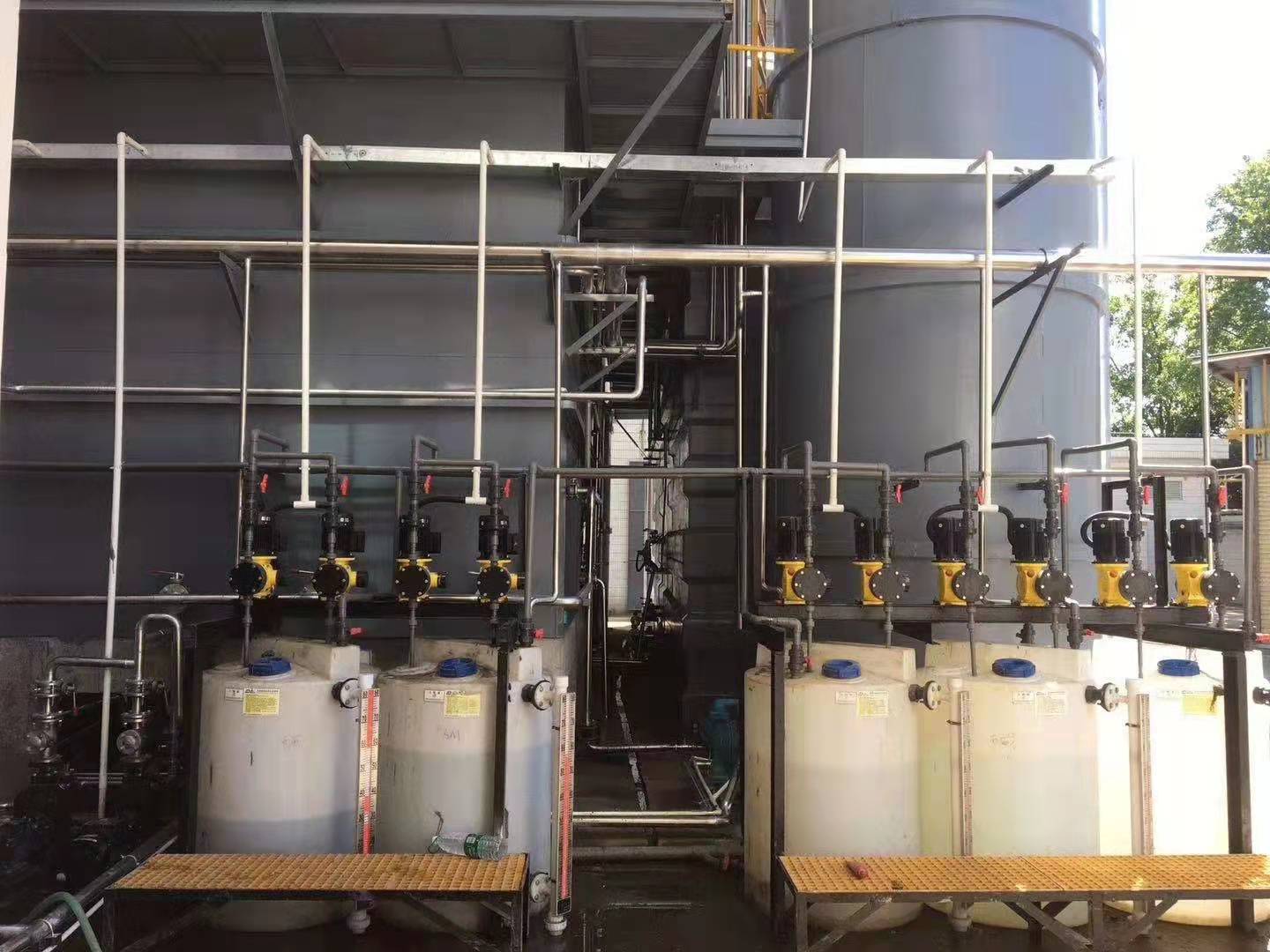

Outdoor chemical dosing station — solenoid pumps with chemical storage tanks
Request a Quote
Share your process parameters (flow rate, back pressure, media) and we will provide an accurate quotation.
Get a Quote Download Datasheet
