HY-X Series
Hydraulic-Balanced Diaphragm, Ultra-High-Pressure Precision
Product Overview
The HY-X Series employs hydraulic-balanced diaphragm technology, maintaining equal pressure on both sides of the diaphragm to significantly extend diaphragm service life. It is designed for ultra-high-pressure, high-accuracy industrial metering and is the preferred solution for petrochemical, high-pressure water injection, and similar demanding applications.
Product Features
Technical Data
| Model | Max Flow (L/h) | Max Pressure (bar) | Motor Power (kW) |
|---|---|---|---|
| HY-X-050/100 | 50 | 100 | 1.5 |
| HY-X-100/70 | 100 | 70 | 2.2 |
| HY-X-250/50 | 250 | 50 | 3.0 |
| HY-X-500/30 | 500 | 30 | 4.0 |
| HY-X-1000/15 | 1000 | 15 | 5.5 |
* Specifications listed are for standard models. Contact us for custom configurations.
Typical Applications
Installation & Application Gallery

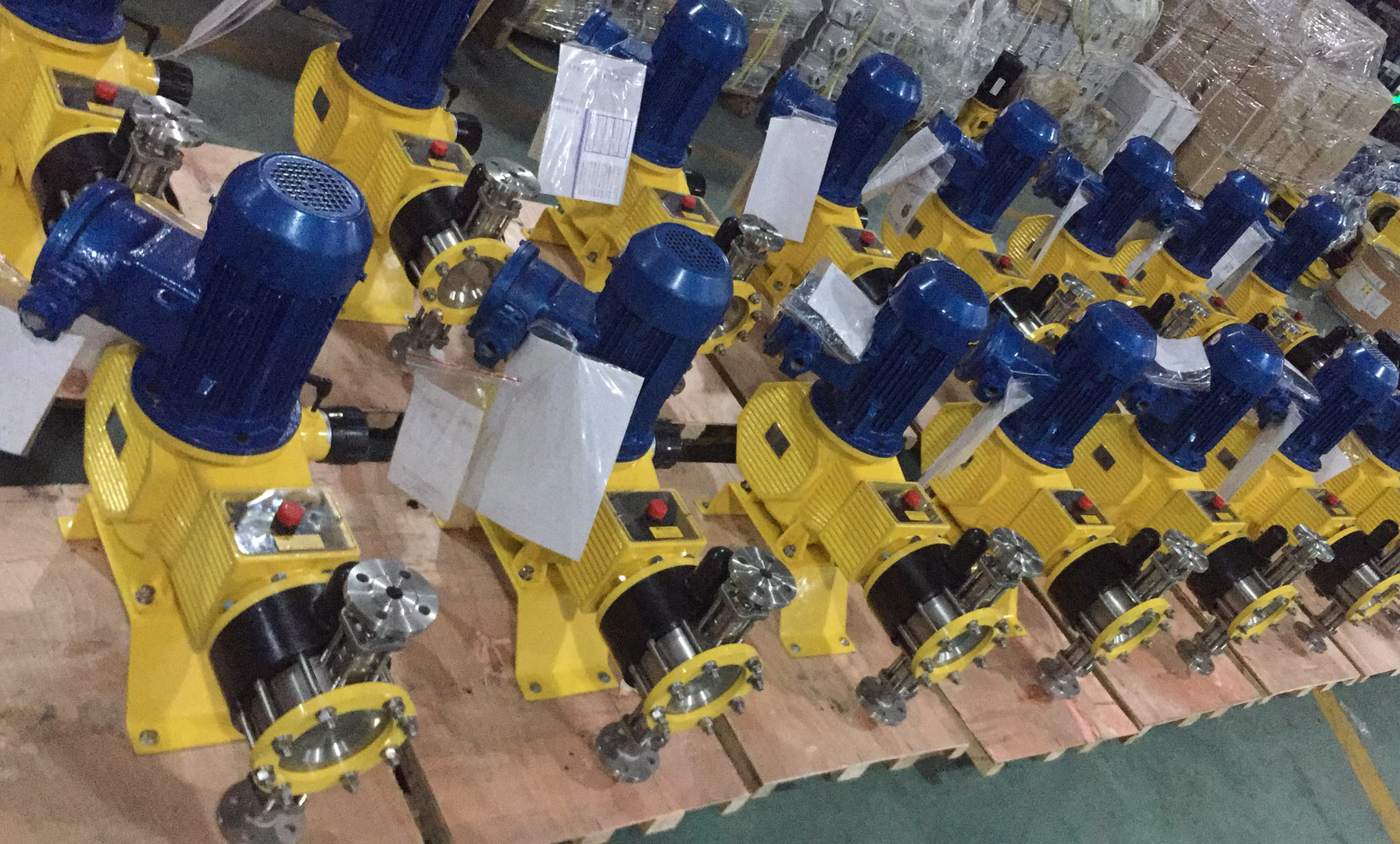

Hydraulic metering pumps ready for batch shipment — factory stock photo
Assembly workshop — hydraulic pumps undergoing pre-shipment quality inspection
Request a Quote
Share your process parameters (flow rate, back pressure, media) and we will provide an accurate quotation.
